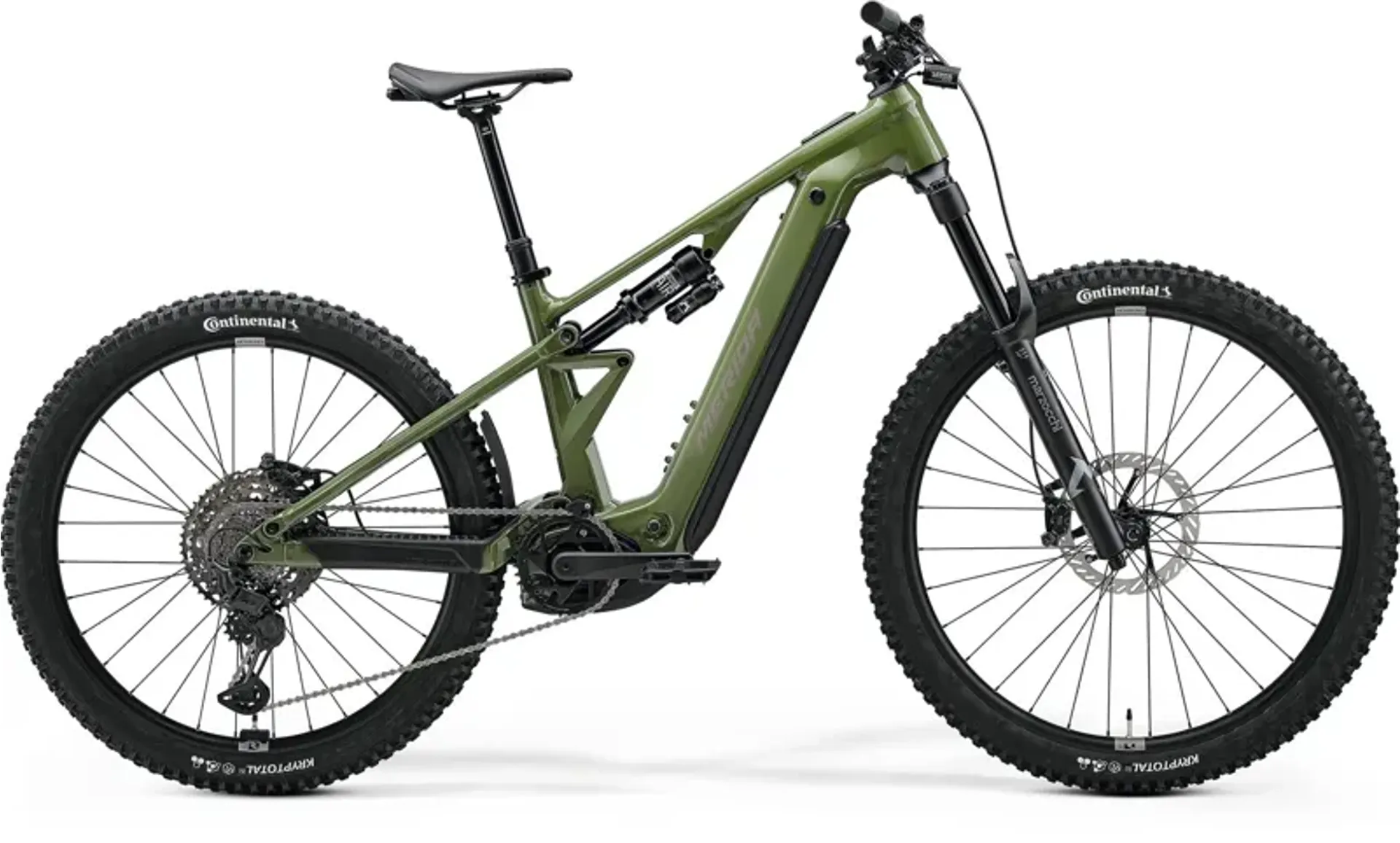

Merida Etmo 800 Anaconda Green/Grey in Anaconda Green/Grey

£5,250.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free 30 day returns

RETURNS GUIDE

We want you to be 100% satisfied with your purchase. If you need to return an item, please follow the guidelines below.

RETURN WINDOW

You have 30 days from the date of receipt to return an item for a refund or exchange

CONDITION

Items must be returned in their original packaging, unused, and in a resaleable condition. For bikes, they must not have been ridden outside. Proof of purchase is required.

HOW TO RETURN

Contact us at shop@redskybikes.co.uk to notify us of your return

If you cannot get to the store to return your goods then package the item securely and arrange shipping to:

RedSky Bikes
Returns
3 Campion Square
Thirsk
YO7 1GW

RETURN SHIPPING

The cost of returning items is the responsibility of the customer, except in cases where the item is faulty or was sent in error. We recommend using a tracked service for high-value items.

FAULTY ITEMS

If your item arrives damaged or develops a fault, please contact us immediately so we can resolve the issue through repair, replacement, or refund.

Email shop@redskybikes.co.uk or Phone 01845 444464

REFUNDS
To return your purchase please visit the shop at 3 Campion Square, Thirsk YO7 1GW or Email us atshop@redskybikes.co.uk to arrange to ship the goods back to us.

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 calendar days.

There are certain situations where only partial refunds are granted
Any item not in its original condition, is damaged or missing parts for reasons not due to our error. Any item that is returned more than 30 days after delivery

30 DAY RIGHTS

Under theConsumer Rights Act of 2015you have an early right to reject goods that are unsatisfactory quality, unfit for purpose or not as described and get a full refund. This right is limited to 30 days from the date you took ownership of the goods (this could the date of purchase or the date the goods were delivered to you – whichever is later).

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

If 30 days have gone by since your purchase, unfortunately you can’t demand a full refund in the first instance but you still have the right to a repair or replacement under theConsumer Rights Act 2015.

GOODS EXEMPT FROM RETURNS

Perishable goods such as food products cannot be returned.

We also do not accept products that are intimate, or hazardous materials, or flammable liquids or gases.

RETURNS FAQs

How long do I have to return an item?

You have 30 days from the date you receive your order to return an item to us for a refund or exchange.

What condition do returned items need to be in?

All items must be returned in their original packaging, unused, and in a resaleable condition. For bicycles, this means they must not have been ridden outside.

How do I make a return?

Send an email to shop@redskybikes.co.uk letting us know what you would like to return.

Package your items securely.

Post or take the goods back to: RedSky Bikes, Returns, 3 Campion Square, Thirsk YO7 1GW

Who pays for return shipping?

The customer is responsible for the cost of returning items back to us. We highly recommend using a tracked shipping service, especially for high-value items, as we cannot be held responsible for returns lost in transit. If an item is faulty or we sent the wrong product, we will cover the return shipping costs.

What do I do if my item arrives damaged or is faulty?

We are very sorry if this happens! Please contact the shop immediately via email shop@redskybikes.co.uk or phone 01845 444464. We will guide you through the process of getting the item back to us so we can issue a replacement, arrange a repair, or process a refund.

Late or missing refunds

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at shop@redskybikes.co.uk.

COMPLAINTS PROCEDURE

If you are not entirely happy with your recent experience, please raise a complaint by contacting Gemma Thompson in our customer service team on 01845 444464 or shop@redskybikes.co.uk

We aim to resolve your complaint as quickly as possible and if we are able to resolve your complaint within a reasonable time frame, we will send you a final response detailing our resolution.

If we are unable to provide you with a final response within a reasonable time frame, we will send you an email explaining the reason for delay and when we expect to issue you with a final response.

All comments and complaints will be dealt with promptly, fairly and sensitively. We will regularly review and

Merida Etmo 800 Anaconda Green/Grey in Anaconda Green/Grey

Season:2026

Brand:Merida

Code:P-R930

A quality e-MTB means more runs, more fun, and more time just getting out there. The Merida Etmo 800 delivers serious trail performance without hammering your wallet.

The Etmo is Merida's most price-focussed Bosch-powered e-MTB. Merida has used all their aluminium frame design and manufacturing know-how to create a durable frame inspired by the award-winning long-travel eONE-EIGHTY, but in an extra versatile and affordable package. This is backed up with a lifetime frame warranty for category 4 all mountain (AM) + enduro use. Combining a high-value aluminium 160 mm travel frame with Bosch's powerful 100 Nm CX motor and big 800 Wh battery, you can explore for hours or lap your favourite loops all day long.

With mixed-size wheels for a fun but stable ride and proven geometry, fun is guaranteed whether you are a fresh face to mountain biking or an experienced hand. Quality kit from Shimano handles stopping and drivetrain duty, while Marzocchi's legendary Bomber suspension, including a stout 38 mm stanchion fork, takes care of the bumps. The Etmo uses 160 mm of travel at either end and mixed wheel sizes, so it is fun and fast on any terrain, with handling that will bring a smile to the face of experienced riders and fresh faces alike.

Features:

  • Advanced LITE aluminium frame design with 160 mm travel
  • Mixed 29/27.5" size wheel setup for agile and confident handling
  • Bosch CX 100 Nm drive unit with 800 Wh internal battery
  • Marzocchi Bomber Z fork and Bomber Air rear shock, Shimano XT brakes and XT Linkglide 11-speed drivetrain
  • Reynolds 309 tubeless ready wheelset and Continental Kryptotal tyres
  • Lifetime frame warranty for Category 4 All Mountain (AM) + Enduro use
Technical Information
  • Frame
    ETMO LITE
  • Material
    aluminium
  • Suspension travel
    160mm
  • Max. wheelsize
    27.5” x 2,6”
  • Axle standard
    148x12mm
  • Frame size
    Short, Mid, Long, XLong
  • Color
    ANACONDA GREEN (GREY)
  • Fork
    Marzocchi Bomber Z eMTB
  • Fork type
    Air
  • Fork suspension travel
    160mm
  • Fork offset
    44mm
  • Max wheelsize
    29x2.6"
  • Shock
    Marzocchi Bomber Air
  • Brakes
    Shimano XT M8220 (4 piston)
  • Rotors
    Shimano CL700 (203mm)
  • Headset
    Acros ICR Blocklock
  • Handlebar
    MERIDA EXPERT eTR (780mm width)
  • Handlebar stem
    MERIDA EXPERT eTR II (aluminium, 35mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes)
  • Grip
    MERIDA EXPERT TR
  • Derailleur (r)
    Shimano XT M8130 (LinkGlide)
  • Shifters
    Shimano MT500-IL / Shimano XT M8130 11
  • Seat post
    MERIDA EXPERT TR II (34.9mm diameter, 0mm setback, travel seatpost: 125mm (XS), 150mm (S), 170mm (M), 200mm (L), 230mm (XL))
  • Seat clamp
    MERIDA EXPERT
  • Saddle
    Proxim Altius (V-mount adapter, incl. MERIDA minitool)
  • Pedal
    VP VPE-533
  • Chain
    Shimano LG500
  • Chainwheel
    FSA Direct Mount Steel Chainring (36 teeth)
  • Crank
    FSA CK-220 wide E-Bike Forged Crankset (160mm for all sizes)
  • Freewheel
    Shimano LG700 (11-50 teeth, 11 speed)
  • Hubs
    Shimano TC500-B / Shimano TC500-HM-B (110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock)
  • Rim
    Reynolds 309 Enduro Comp (30mm inner width, aluminium, Tubeless ready (tubeless tape installed), front 29", rear 27.5")
  • Tyre front
    Continental Kryptotal-F (29x2.4", fold, TR, Enduro casing, Soft compund)
  • Tyre rear
    Continental Kryptotal-R (27.5x2.4", fold, Enduro casing, soft compound)
  • Axles
    MERIDA EXPERT TR (including removeable lever, 6/4mm allen key)
  • Spokes
    Black stainless (black nipples)
  • Light front
    Lezyne Hekto StVZO E350+ Reverse (reverse MERIDA Custom Mount)
  • Light rear
    USB REAR Light CG-214RG
  • Fender
    RF-001 mini fender
  • Drive unit
    Bosch Performance Line CX
  • Battery
    Bosch PowerTube 800 (800Wh)
  • Battery lock
    Abus Key
  • Display
    Bosch Purion 400
  • Approx. weight
    26.8 kg (weighed at frame size M)
  • Max. weight
    140 kg
  • Geometry Tyre Sizes
    Short: 29/27.5", Mid: 29/27.5", Long: 29/27.5", XLong: 29/27.5"
  • Geometry ST seat tube [mm]
    Short: 380, Mid: 405, Long: 430, XLong: 455
  • Geometry TT top tube [mm]
    Short: 556, Mid: 584, Long: 609, XLong: 636
  • Geometry CS chain stay length [mm]
    Short: 446, Mid: 446, Long: 446, XLong: 446
  • Geometry HTA head tube angle [°]
    Short: 65, Mid: 65, Long: 65, XLong: 65
  • Geometry STA seat tube angle [°]
    Short: 78.5, Mid: 78.5, Long: 78.5, XLong: 78.5
  • Geometry BD bottom bracket drop [mm]
    Short: 20, Mid: 20, Long: 20, XLong: 20
  • Geometry HT head tube [mm]
    Short: 105, Mid: 115, Long: 115, XLong: 125
  • Geometry FL fork length [mm]
    Short: 580, Mid: 580, Long: 580, XLong: 580
  • Geometry FO fork offset [mm]
    Short: 44, Mid: 44, Long: 44, XLong: 44
  • Geometry R reach [mm]
    Short: 425, Mid: 450, Long: 475, XLong: 500
  • Geometry S stack [mm]
    Short: 644, Mid: 653, Long: 653, XLong: 662
  • Geometry WB wheel base [mm]
    Short: 1202, Mid: 1231, Long: 1256, XLong: 1285
  • Geometry SH stand over height [mm]
    Short: 745, Mid: 748, Long: 751, XLong: 754
  • Spare Parts List
    AM0, AM7, AM8
  • Spare Part 1
    Item-No: A2300000696, Name: BOLT, Info: M6x1 OD10mm L74mm, Pieces: 1
  • Spare Part 2
    Item-No: A2221000040, Name: BEARING, Info: 172607V-2RS OD26mm ID17mm W7mm, Pieces: 1
  • Spare Part 3
    Item-No: A2294000102, Name: WASHER, Info: OD21mm ID17.1mm H3mm, Pieces: 1
  • Spare Part 4
    Item-No: A2294000016, Name: WASHER, Info: OD19mm ID15.1mm H3mm, Pieces: 3
  • Spare Part 5
    Item-No: A2221000043, Name: BEARING, Info: 3802V-2RS OD24mm ID15mm W7mm, Pieces: 3
  • Spare Part 6
    Item-No: A2300000609, Name: SCREW, Info: M10x1 L15mm, Pieces: 1, Torque NM: 15~17
  • Spare Part 7
    Item-No: A2300000625, Name: BOLT, Info: M6x1 OD10mm L39mm, Pieces: 1
  • Spare Part 8
    Item-No: A2298000113, Name: SCREW, Info: M6x1 L16mm, Pieces: 4, Torque NM: 8~10
  • Spare Part 9
    Item-No: A2294000196, Name: WASHER, Info: for M6 sunkenhead screw OD16mm, Pieces: 4
  • Spare Part 10
    Item-No: A2300000693, Name: BOLT, Info: M6x1 OD12mm L62mm, Pieces: 1
  • Spare Part 11
    Item-No: A2300000803, Name: SCREW, Info: M8x1 L49mm, Pieces: 1, Torque NM: 18~20
  • Spare Part 12
    Item-No: A2294000224, Name: LOCK RING, Info: for ID21, Pieces: 1
  • Spare Part 13
    Item-No: A2294000223, Name: WASHER, Info: OD15.5mm ID12.1mm H3mm, Pieces: 2
  • Spare Part 14
    Item-No: A2221000035, Name: BEARING, Info: 6801V-2RS OD21mm ID12mm W5mm, Pieces: 2
  • Spare Part 15
    Item-No: A2031000094, Name: LINK, Pieces: 1
  • Spare Part 16
    Item-No: A2262000059, Name: WASHER, Info: OD15.5mm ID12.1mm H31mm, Pieces: 1
  • Spare Part 17
    Item-No: A2300000743, Name: SCREW, Info: M15x1 L20.5mm, Pieces: 2, Torque NM: 23~25
  • Spare Part 18
    Item-No: A2294000225, Name: LOCK RING, Info: for ID24, Pieces: 2
  • Spare Part 19
    Item-No: A2300000652, Name: BOLT, Info: M6x1 OD10mm L18.8mm, Pieces: 2
  • Spare Part 20
    Item-No: A2294000212, Name: WASHER, Info: OD14mm ID10.1mm H3.1mm, Pieces: 4
  • Spare Part 21
    Item-No: A2294000211, Name: LOCK RING, Info: for ID22, Pieces: 2
  • Spare Part 22
    Item-No: A2221000060, Name: BEARING, Info: 6900V-2RS OD22mm ID10mm W6mm, Pieces: 2
  • Spare Part 23
    Item-No: A2292000141, Name: WASHER, Info: OD13mm ID9mm H1mm, Pieces: 1
  • Spare Part Headset 1
    Item-No: A2191000301, Name: HEAD SET, Info: FSA ZS56/ZS66 Cable through Headset, Pieces: 1
  • Spare Part Headset 2
    Item-No: A2298000160, Name: SCREW, Info: M4x0.7 L10mm, Pieces: 8, Torque NM: 3~5
  • Spare Part Headset 3a
    Item-No: A2263000069, Name: BLIND PLUG, Info: for top tube opening, Pieces: 1
  • Spare Part Headset 3b
    Item-No: A9098000029, Name: BOSCH OEM PART, Info: Bosch BRC 3100, Pieces: 1, Torque NM: 3~5
  • Spare Part Headset 4
    Item-No: A2298000144, Name: SCREW, Info: M5x0.8 L10mm, Pieces: 4, Torque NM: 4~6
  • Spare Part Headset 5
    Item-No: A2143000203, Name: BUSHING, Info: For Screwhole, Pieces: 1
  • Spare Part Headset 6.1
    Item-No: A2263000102, Name: COVER, Info: for battery (800Wh), Pieces: 1
  • Spare Part Headset 6.2
    Item-No: A2263000067, Name: COVER, Info: for battery, Pieces: 1
  • Spare Part Headset 7
    Item-No: A2300000318, Name: SCREW, Info: M4x0.7 L12mm, Pieces: 4, Torque NM: 3~5
  • Spare Part Headset 8
    Item-No: A2263000070, Name: COVER MOUNT, Info: Fidlock Pinlock vertical Female, Pieces: 1
  • Spare Part Headset 9
    Item-No: A2030000033, Name: MOUNT, Pieces: 1
  • Spare Part Headset 10
    Item-No: A2263000081, Name: COVER MOUNT, Info: Fidlock Pinlock vertical Male, Pieces: 1
  • Spare Part Headset 11
    Item-No: A2232000064, Name: CHAIN GUIDE, Info: for Bosch with 55mm chainline, Pieces: 1
  • Spare Part Headset 12
    Item-No: A2263000103, Name: PROTECTOR, Info: For motor (Bosch CX/PX/PL), Pieces: 1
  • Spare Part Headset 13
    Item-No: A2263000104, Name: COVER, Info: Extra Cover for Bosch PX/PL Motor, Pieces: 1
  • Spare Part Headset 14
    Item-No: A2298000361, Name: SCREW, Info: M4x0.7 L12mm, Pieces: 3, Torque NM: 3~5
  • Spare Part Headset 15
    Item-No: A2292000139, Name: WASHER, Info: OD11mm ID4.5mm H0.8mm, Pieces: 1
  • Spare Part Headset 16
    Item-No: A2158000094, Name: PROTECTOR, Info: for chain stay, Pieces: 1
  • Spare Part Headset 17
    Item-No: A2002000135, Name: THRU AXLE, Info: EXPERT TR; L=178.5mm M12x1 TL=13.5mm, Pieces: 1
  • Spare Part Headset 18
    Item-No: A2298000409, Name: SCREW, Info: M6x1 L12mm, Pieces: 3, Torque NM: 12~14
  • Spare Part Headset 19
    Item-No: A2136000158, Name: MOUNT, Info: PM200, Pieces: 1
  • Spare Part Headset 20
    Item-No: A2116000284, Name: FENDER, Info: Small Fender, Pieces: 1
  • Spare Part Headset 21
    Item-No: A2263000062, Name: MOUNT, Info: for charging port, Pieces: 1
  • Spare Part Headset 22
    Item-No: A2143000082, Name: CABLE GUIDE, Info: for mechanical RD cable, Pieces: 1
  • Spare Part Headset 23
    Item-No: A2258000099, Name: CABLE GUIDE, Info: for brake and speed sensor/light, Pieces: 1
  • Spare Part Headset 24
    Item-No: A9085000045, Name: BOSCH OEM PART, Info: Bosch PT600/800 battery rail, Pieces: 1
  • Spare Part Headset 25
    Item-No: A2158000117, Name: PROTECTOR, Info: for cables in head tube, Pieces: 1
  • Spare Part Headset 26
    Item-No: A2302000117, Name: NUT, Info: M5 - For battery rail, Pieces: 2
  • Spare Part Headset 27
    Item-No: A2302000116, Name: NUT, Info: for Bosch Motor Mount, Pieces: 2
  • Spare Part Headset 28
    Item-No: A2143000199, Name: CABLE PLUG, Pieces: 1
  • Spare Part Headset 29
    Item-No: A2298000178, Name: SCREW, Info: M5x0.8 L8mm, Pieces: 1, Torque NM: 6~8
  • Spare Part Headset 30
    Item-No: A2262000071, Name: BOSCH OEM PART, Info: Sleeve Narrow, Pieces: 2
  • Spare Part Headset 31
    Item-No: A2300000765, Name: BOSCH OEM PART, Info: Bolt Narrow, Pieces: 2, Torque NM: 30
  • Spare Part Headset 32
    Item-No: A2258000286, Name: CABLE GUIDE, Info: Stick on cable guide (3/4/4 mm), Pieces: 3
  • Spare Part Headset 33
    Item-No: A2258000287, Name: CABLE GUIDE, Info: Stick on cable guide (4/5 mm), Pieces: 2
  • Spare Part Fender 1
    Item-No: A2115000037, Name: FENDER, Info: Front Fender, Pieces: 1
  • Spare Part Fender 2.1
    Item-No: A2117000082, Name: FENDER ACCESSOIRES, Info: Front Fender Strut for XFUSION MIGO 34 fork, Pieces: 1
  • Spare Part Fender 2.2
    Item-No: A2117000029, Name: FENDER ACCESSOIRES, Info: Front Fender Strut for SUNTOUR ZERON 36X fork fork, Pieces: 1
  • Spare Part Fender 3
    Item-No: A2298000144, Name: SCREW, Info: M5x0.8 L10mm, Pieces: 1
  • Spare Part Fender 4
    Item-No: A2302000027, Name: NUT, Info: M5, Pieces: 4
  • Spare Part Fender 5
    Item-No: A2298000068, Name: SCREW, Info: M5x0.8 L10mm, Pieces: 4
  • Spare Part Fender 6
    Item-No: A2119000001, Name: FENDER ACCESSOIRES, Info: Fork Adapter Suntour, Pieces: 1
  • Spare Part Fender 7
    Item-No: A2292000049, Name: WASHER, Info: OD10mm ID5.5mm H1mm, Pieces: 3
  • Spare Part Fender 8
    Item-No: A2116000283, Name: FENDER, Info: Long Performance Fender, Pieces: 1
  • Spare Part Fender 9
    Item-No: A2298000379, Name: SCREW, Info: M5x0.8 L35mm, Pieces: 2
  • Spare Part Fender 10
    Item-No: A2298000250, Name: SCREW, Info: M4x0.7 L12mm, Pieces: 2
  • Spare Part Fender 11
    Item-No: A2098000052, Name: CARRIER, Info: for eONE-FORTY LITE only with fender and screws, Pieces: 1
  • Spare Part Fender 12
    Item-No: A2298000473, Name: SCREW, Info: M5x0.8 L33mm, Pieces: 2
  • Spare Part Fender 13.1
    Item-No: A2292000014, Name: WASHER, Info: OD9mm ID5.2mm H5mm, Pieces: 6
  • Spare Part Fender 13.2
    Item-No: A2292000028, Name: WASHER, Info: OD9mm ID5.2mm H3mm, Pieces: 2
  • Spare Part Fender 14.1
    Item-No: A2101000053, Name: FENDER, Info: Rear Fender Inside Strut, Pieces: 1
  • Spare Part Fender 14.2
    Item-No: A2116000358, Name: FENDER, Info: Rear Fender, Pieces: 1
  • Spare Part Fender 15
    Item-No: A2298000430, Name: SCREW, Info: M5x0.8 L10mm, Pieces: 1
  • Spare Part Fender 16
    Item-No: A2298000240, Name: SCREW, Info: M6x1 L16mm, Pieces: 1
  • Spare Part Fender 17
    Item-No: A2302000016, Name: NUT, Info: M5, Pieces: 1
  • Spare Part Fender 18
    Item-No: A2298000239, Name: SCREW, Info: M6x1 L14mm, Pieces: 2
  • Spare Part Fender 19
    Item-No: A2298000237, Name: SCREW, Info: M6x1 L20mm, Pieces: 2
  • Spare Part Fender 20
    Item-No: A2184000060, Name: KICKSTAND, Info: for rear mount, Pieces: 1
  • Spare Part Fender 21
    Item-No: A2292000005, Name: WASHER, Info: OD10mm ID6.2mm H1mm, Pieces: 1
Sizing Information
Professional Opinion
Product Reviews
Write a review
0 As rated by 0 customers

Write a review for Merida Etmo 800 Anaconda Green/Grey in Anaconda Green/Grey

Your name
Your email address
How would you rate it?
Would you recommend this product?
Let others know your opinion
Submit Review Close
Question(s) answered about Merida Etmo 800 Anaconda Green/Grey in Anaconda Green/Grey
Ask a question
Question(s) asked regarding Merida Etmo 800 Anaconda Green/Grey in Anaconda Green/Grey

Ask a question

Your name
Your email address
Your phone number
Your question
Submit Question  Close
Home Mountain Biking Bikes Merida Electric Bikes
