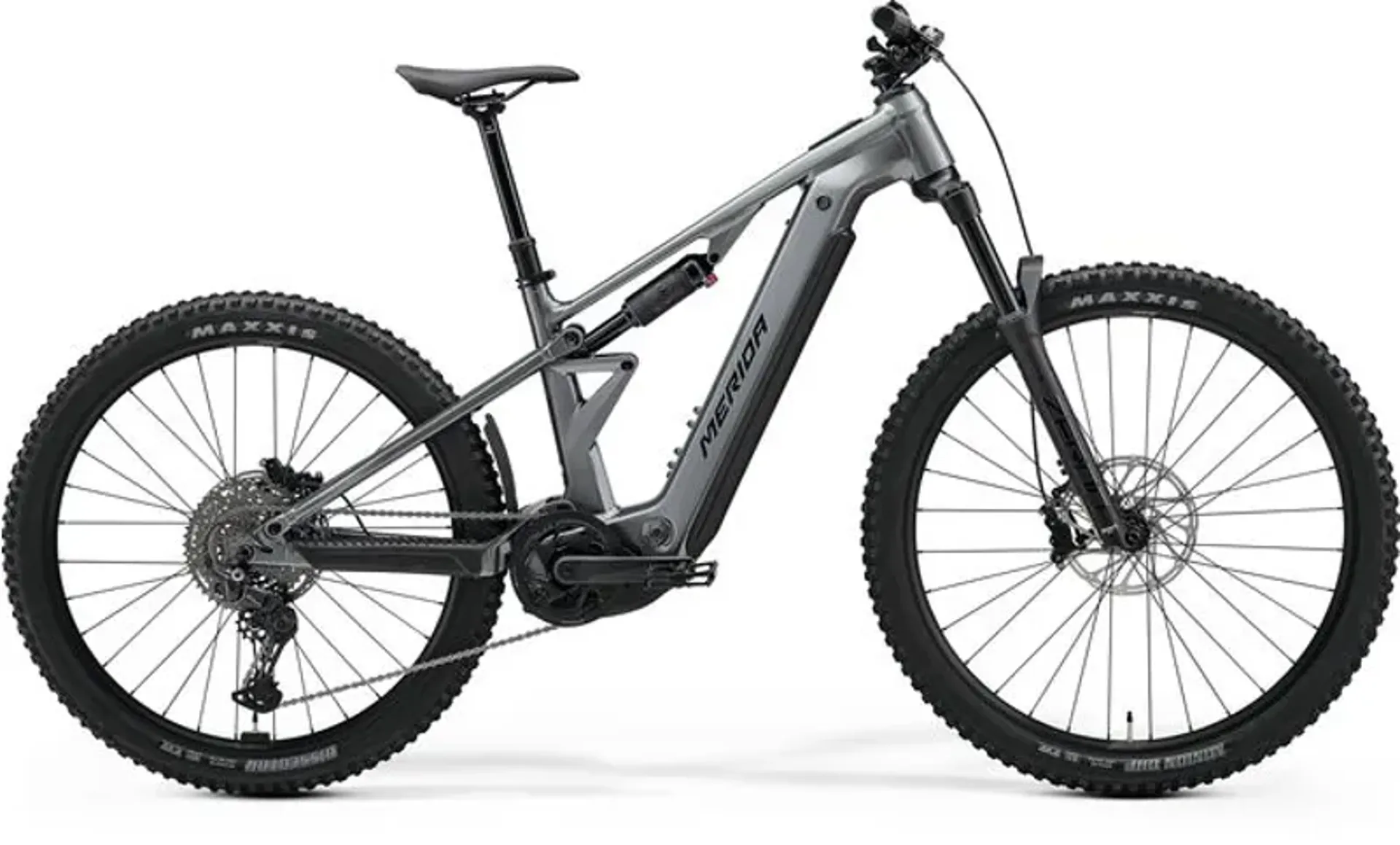

Merida Etmo 500 Pro in Gunmetal Grey/Black

£4,400.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free 30 day returns

RETURNS GUIDE

We want you to be 100% satisfied with your purchase. If you need to return an item, please follow the guidelines below.

RETURN WINDOW

You have 30 days from the date of receipt to return an item for a refund or exchange

CONDITION

Items must be returned in their original packaging, unused, and in a resaleable condition. For bikes, they must not have been ridden outside. Proof of purchase is required.

HOW TO RETURN

Contact us at shop@redskybikes.co.uk to notify us of your return

If you cannot get to the store to return your goods then package the item securely and arrange shipping to:

RedSky Bikes
Returns
3 Campion Square
Thirsk
YO7 1GW

RETURN SHIPPING

The cost of returning items is the responsibility of the customer, except in cases where the item is faulty or was sent in error. We recommend using a tracked service for high-value items.

FAULTY ITEMS

If your item arrives damaged or develops a fault, please contact us immediately so we can resolve the issue through repair, replacement, or refund.

Email shop@redskybikes.co.uk or Phone 01845 444464

REFUNDS
To return your purchase please visit the shop at 3 Campion Square, Thirsk YO7 1GW or Email us atshop@redskybikes.co.uk to arrange to ship the goods back to us.

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 calendar days.

There are certain situations where only partial refunds are granted
Any item not in its original condition, is damaged or missing parts for reasons not due to our error. Any item that is returned more than 30 days after delivery

30 DAY RIGHTS

Under theConsumer Rights Act of 2015you have an early right to reject goods that are unsatisfactory quality, unfit for purpose or not as described and get a full refund. This right is limited to 30 days from the date you took ownership of the goods (this could the date of purchase or the date the goods were delivered to you – whichever is later).

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

If 30 days have gone by since your purchase, unfortunately you can’t demand a full refund in the first instance but you still have the right to a repair or replacement under theConsumer Rights Act 2015.

GOODS EXEMPT FROM RETURNS

Perishable goods such as food products cannot be returned.

We also do not accept products that are intimate, or hazardous materials, or flammable liquids or gases.

RETURNS FAQs

How long do I have to return an item?

You have 30 days from the date you receive your order to return an item to us for a refund or exchange.

What condition do returned items need to be in?

All items must be returned in their original packaging, unused, and in a resaleable condition. For bicycles, this means they must not have been ridden outside.

How do I make a return?

Send an email to shop@redskybikes.co.uk letting us know what you would like to return.

Package your items securely.

Post or take the goods back to: RedSky Bikes, Returns, 3 Campion Square, Thirsk YO7 1GW

Who pays for return shipping?

The customer is responsible for the cost of returning items back to us. We highly recommend using a tracked shipping service, especially for high-value items, as we cannot be held responsible for returns lost in transit. If an item is faulty or we sent the wrong product, we will cover the return shipping costs.

What do I do if my item arrives damaged or is faulty?

We are very sorry if this happens! Please contact the shop immediately via email shop@redskybikes.co.uk or phone 01845 444464. We will guide you through the process of getting the item back to us so we can issue a replacement, arrange a repair, or process a refund.

Late or missing refunds

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at shop@redskybikes.co.uk.

COMPLAINTS PROCEDURE

If you are not entirely happy with your recent experience, please raise a complaint by contacting Gemma Thompson in our customer service team on 01845 444464 or shop@redskybikes.co.uk

We aim to resolve your complaint as quickly as possible and if we are able to resolve your complaint within a reasonable time frame, we will send you a final response detailing our resolution.

If we are unable to provide you with a final response within a reasonable time frame, we will send you an email explaining the reason for delay and when we expect to issue you with a final response.

All comments and complaints will be dealt with promptly, fairly and sensitively. We will regularly review and

Merida Etmo 500 Pro in Gunmetal Grey/Black

Season:2026

Brand:Merida

Code:P-R936

A quality e-MTB means more runs, more fun, and more time just getting out there. The Merida Etmo 500 Pro is Merida's most price-focussed Bosch-powered e-MTB.

Merida has used all their aluminium frame design and manufacturing know-how to create a durable frame inspired by the award-winning long-travel eONE-EIGHTY, but in an extra versatile and affordable package. This is backed up with a lifetime frame warranty for category 4 all mountain (AM) + enduro use. The Merida Etmo 500 Pro Road Bike features a powerful Bosch CX 100 Nm motor and high-capacity 800 Wh battery, paired with a reliable aluminium full-suspension frame.

Designed to be a serious off-road machine that won't break your budget, Suntour suspension units deliver on-trail performance, while the reliable shifts of the Shimano drivetrain and powerful SRAM brakes keep things under control. Fun but planted handling is achieved thanks to a mixed wheel size setup and a well-proven geometry concept. The Etmo uses 160 mm of travel at either end and mixed wheel sizes, so it’s fun and fast on any terrain, with handling that’ll bring a smile to the face of experienced riders and fresh faces alike.

Features:

  • Advanced LITE aluminium frame design with 140 mm travel
  • Mixed 29/27.5" size wheel setup for agile and confident handling
  • Bosch CX 100 Nm drive unit with 800 Wh internal battery
  • Suntour Zeron 36 X fork and Edge X rear shock, SRAM DB4 brakes and Shimano CUES 10-speed drivetrain
  • MERIDA COMP TRII tubeless ready wheelset and Maxxis tyres
  • Lifetime frame warranty for Category 4 All Mountain (AM) + Enduro use
Technical Information
  • Frame
    ETMO LITE
  • Material
    aluminium
  • Suspension travel
    142mm
  • Wheelsize
    27.5" x 2,6” max.
  • Axle standard
    148x12mm
  • Intube
    *
  • Frame size
    Short, Mid, Long, XLong
  • Color
    GUNMETAL GREY (BLACK)
  • Fork
    SR Suntour Zeron 36X
  • Fork type
    Air
  • Fork suspension travel
    140mm
  • Fork offset
    44mm
  • Max wheelsize
    29x2.6"
  • Shock
    SR Suntour Edge X
  • Brakes
    Sram DB4 stealth
  • Brake pistons
    4 piston
  • Rotors
    Sram CenterLine
  • Rotor size
    200mm
  • Headset
    FSA CRII NO.80
  • Handlebar
    MERIDA COMP TR II
  • Handlebar material
    aluminium
  • Handlebar width
    780mm
  • Handlebar rise
    35mm
  • Handlebar stem
    MERIDA EXPERT eTR II
  • Handlebar stem material
    aluminium
  • Handlebar stem diameter
    35mm
  • Stem angle
  • Stem mount
    Supernova mount
  • Stem length
    40 mm all sizes
  • Grip
    MERIDA COMP TR
  • Derailleur (r)
    Shimano Cues U6000 GS
  • Shifters
    Shimano MT500-L / Shimano Cues U6000-10
  • Seat post
    MERIDA EXPERT TR II
  • Seat post diameter
    34.9mm
  • Seat post setback
    0mm
  • Seat post travel
    125mm (XS), 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
  • Seat clamp
    MERIDA EXPERT
  • Saddle
    MERIDA COMP SL
  • Saddle mount
    V-mount
  • Saddle accessory
    incl. MERIDA minitool
  • Pedal
    VP VPE-527
  • Chain
    Shimano LG500
  • Chainwheel
    FSA Direct Mount Steel Chainring
  • Chainring teeth
    36 teeth
  • Crank
    FSA CK-220 wide E-Bike Forged Crankset
  • Crank length
    160mm for all sizes
  • Freewheel
    Shimano Cues LG400
  • Freewheel range
    11-48 teeth
  • Freewheel speed
    10 speed
  • Hubs
    Shimano TC500-B / Shimano TC500-HM-B
  • Front hub width
    110x15mm
  • Spoke holes (Hub)
    32
  • Hub brake mount
    Centerlock
  • Rear hub width
    148x12mm
  • Rim
    MERIDA COMP TR II
  • Rim inner width
    28mm
  • Rim material
    aluminium
  • Rim compatibility
    Tubeless ready (tubeless tape and valves not included)
  • Rim size
    front 29", rear 27.5"
  • Tyre front
    Maxxis Minion DHF
  • Tyre front specification
    29x2.5", EXO wire, tubeless ready
  • Tyre rear
    Maxxis Dissector
  • Tyre rear specification
    27.5x2.4" wired, tubeless ready
  • Axles
    MERIDA EXPERT TR
  • Axle accessories
    including removeable lever, 6/4mm allen key
  • Spokes
    Black stainless
  • Spoke nipples
    black
  • Light front
    USB rechargable Chance Good CG-119PG-BLACK(1)
  • Light rear
    USB rechargable Chance Good CG-404RG-BLK
  • Fender
    RF-001 mini fender
  • Drive unit
    Bosch Performance Line CX
  • Battery
    Bosch PowerTube 800
  • Battery capacity
    800Wh
  • Battery lock
    Abus Key
  • Display
    Bosch Purion 200
  • Max. weight
    140 kg
  • Geometry Tyre Sizes
    29/27.5" for all sizes
  • ST seat tube [mm]
    Short: 380, Mid: 405, Long: 430, XLong: 455
  • TT top tube [mm]
    Short: 556, Mid: 584, Long: 609, XLong: 636
  • CS chain stay length [mm]
    446 for all sizes
  • HTA head tube angle [°]
    65 for all sizes
  • STA seat tube angle [°]
    78.5 for all sizes
  • BD bottom bracket drop [mm]
    20 for all sizes
  • HT head tube [mm]
    Short: 105, Mid: 115, Long: 115, XLong: 125
  • FL fork length [mm]
    580 for all sizes
  • FO fork offset [mm]
    44 for all sizes
  • R reach [mm]
    Short: 425, Mid: 450, Long: 475, XLong: 500
  • S stack [mm]
    Short: 644, Mid: 653, Long: 653, XLong: 662
  • WB wheel base [mm]
    Short: 1202, Mid: 1231, Long: 1256, XLong: 1285
  • SH stand over height [mm]
    Short: 745, Mid: 748, Long: 751, XLong: 754
  • Spare Parts (Frame)
    AM0, AM7, AM8
  • Spare Part No. 1
    Item-No: A2300000696, Name: BOLT, Info: M6x1 OD15/17mm L74mm, Pieces: 1
  • Spare Part No. 2
    Item-No: A2221000040, Name: BEARING, Info: 172607V-2RS OD26mm ID17mm W7mm, Pieces: 1
  • Spare Part No. 3
    Item-No: A2294000102, Name: WASHER, Info: OD21mm ID17.1mm H3mm, Pieces: 1
  • Spare Part No. 4
    Item-No: A2294000016, Name: WASHER, Info: OD19mm ID15.1mm H3mm, Pieces: 3
  • Spare Part No. 5
    Item-No: A2221000043, Name: BEARING, Info: 3802V-2RS OD24mm ID15mm W7mm, Pieces: 3
  • Spare Part No. 6
    Item-No: A2300000609, Name: SCREW, Info: M10x1 L15mm, Pieces: 1, Torque NM: 15~17
  • Spare Part No. 7
    Item-No: A2300000625, Name: BOLT, Info: M6x1 OD10mm L39mm, Pieces: 1
  • Spare Part No. 8
    Item-No: A2298000113, Name: SCREW, Info: M6x1 L16mm, Pieces: 4, Torque NM: 8~10
  • Spare Part No. 9
    Item-No: A2294000196, Name: WASHER, Info: for M6 sunkenhead screw OD16mm, Pieces: 4
  • Spare Part No. 10
    Item-No: A2300000693, Name: BOLT, Info: M6x1 OD12mm L62mm, Pieces: 1
  • Spare Part No. 11
    Item-No: A2300000803, Name: SCREW, Info: M8x1 L49mm, Pieces: 1, Torque NM: 18~20
  • Spare Part No. 12
    Item-No: A2294000224, Name: LOCK RING, Info: for ID21, Pieces: 1
  • Spare Part No. 13
    Item-No: A2294000223, Name: WASHER, Info: OD15.5mm ID12.1mm H3mm, Pieces: 2
  • Spare Part No. 14
    Item-No: A2221000035, Name: BEARING, Info: 6801V-2RS OD21mm ID12mm W5mm, Pieces: 2
  • Spare Part No. 15
    Item-No: A2031000094, Name: LINK, Pieces: 1
  • Spare Part No. 16
    Item-No: A2262000059, Name: WASHER, Info: OD15.5mm ID12.1mm H31mm, Pieces: 1
  • Spare Part No. 17
    Item-No: A2300000743, Name: SCREW, Info: M15x1 L20.5mm, Pieces: 2, Torque NM: 23~25
  • Spare Part No. 18
    Item-No: A2294000225, Name: LOCK RING, Info: for ID24, Pieces: 2
  • Spare Part No. 19
    Item-No: A2300000652, Name: BOLT, Info: M6x1 OD10mm L18.8mm, Pieces: 2
  • Spare Part No. 20
    Item-No: A2294000212, Name: WASHER, Info: OD14mm ID10.1mm H3.1mm, Pieces: 4
  • Spare Part No. 21
    Item-No: A2294000211, Name: LOCK RING, Info: for ID22, Pieces: 2
  • Spare Part No. 22
    Item-No: A2221000060, Name: BEARING, Info: 6900V-2RS OD22mm ID10mm W6mm, Pieces: 2
  • Spare Part No. 23
    Item-No: A2292000141, Name: WASHER, Info: OD13mm ID9mm H1mm, Pieces: 1
  • Spare Part Headset No. 1
    Item-No: A2191000301, Name: HEAD SET, Info: FSA ZS56/ZS66 Cable through Headset, Pieces: 1
  • Spare Part Headset No. 2
    Item-No: A2298000160, Name: SCREW, Info: M4x0.7 L10mm, Pieces: 8, Torque NM: 3~5
  • Spare Part Headset No. 3a
    Item-No: A2263000069, Name: BLIND PLUG, Info: for top tube opening, Pieces: 1
  • Spare Part Headset No. 3b
    Item-No: A9098000029, Name: BOSCH OEM PART, Info: Bosch BRC 3100, Pieces: 1, Torque NM: 3~5
  • Spare Part Headset No. 4
    Item-No: A2298000144, Name: SCREW, Info: M5x0.8 L10mm, Pieces: 4, Torque NM: 4~6
  • Spare Part Headset No. 5
    Item-No: A2143000203, Name: BUSHING, Info: For Screwhole, Pieces: 1
  • Spare Part Headset No. 6.1
    Item-No: A2263000102, Name: COVER, Info: for battery (800Wh), Pieces: 1
  • Spare Part Headset No. 6.2
    Item-No: A2263000067, Name: COVER, Info: for battery, Pieces: 1
  • Spare Part Headset No. 7
    Item-No: A2300000318, Name: SCREW, Info: M4x0.7 L12mm, Pieces: 4, Torque NM: 3~5
  • Spare Part Headset No. 8
    Item-No: A2263000070, Name: COVER MOUNT, Info: Fidlock Pinlock vertical Female, Pieces: 1
  • Spare Part Headset No. 9
    Item-No: A2030000033, Name: MOUNT, Pieces: 1
  • Spare Part Headset No. 10
    Item-No: A2263000081, Name: COVER MOUNT, Info: Fidlock Pinlock vertical Male, Pieces: 1
  • Spare Part Headset No. 11
    Item-No: A2232000064, Name: CHAIN GUIDE, Info: for Bosch with 55mm chainline, Pieces: 1
  • Spare Part Headset No. 12
    Item-No: A2263000103, Name: PROTECTOR, Info: For motor (Bosch CX/PX/PL), Pieces: 1
  • Spare Part Headset No. 13
    Item-No: A2263000104, Name: COVER, Info: Extra Cover for Bosch PX/PL Motor, Pieces: 1
  • Spare Part Headset No. 14
    Item-No: A2298000361, Name: SCREW, Info: M4x0.7 L12mm, Pieces: 3, Torque NM: 3~5
  • Spare Part Headset No. 15
    Item-No: A2292000139, Name: WASHER, Info: OD11mm ID4.5mm H0.8mm, Pieces: 1
  • Spare Part Headset No. 16
    Item-No: A2158000094, Name: PROTECTOR, Info: for chain stay, Pieces: 1
  • Spare Part Headset No. 17
    Item-No: A2002000135, Name: THRU AXLE, Info: EXPERT TR; L=178.5mm M12x1 TL=13.5mm, Pieces: 1
  • Spare Part Headset No. 18
    Item-No: A2298000409, Name: SCREW, Info: M6x1 L12mm, Pieces: 3, Torque NM: 12~14
  • Spare Part Headset No. 19
    Item-No: A2136000158, Name: MOUNT, Info: PM200, Pieces: 1
  • Spare Part Headset No. 20
    Item-No: A2116000284, Name: FENDER, Info: Small Fender, Pieces: 1
  • Spare Part Headset No. 21
    Item-No: A2263000062, Name: MOUNT, Info: for charging port, Pieces: 1
  • Spare Part Headset No. 22
    Item-No: A2143000082, Name: CABLE GUIDE, Info: for mechanical RD cable, Pieces: 1
  • Spare Part Headset No. 23
    Item-No: A2258000099, Name: CABLE GUIDE, Info: for brake and speed sensor/light, Pieces: 1
  • Spare Part Headset No. 24
    Item-No: A9085000045, Name: BOSCH OEM PART, Info: Bosch PT600/800 battery rail, Pieces: 1
  • Spare Part Headset No. 25
    Item-No: A2158000117, Name: PROTECTOR, Info: for cables in head tube, Pieces: 1
  • Spare Part Headset No. 26
    Item-No: A2302000117, Name: NUT, Info: M5 - For battery rail, Pieces: 2
  • Spare Part Headset No. 27
    Item-No: A2302000116, Name: NUT, Info: for Bosch Motor Mount, Pieces: 2
  • Spare Part Headset No. 28
    Item-No: A2143000199, Name: CABLE PLUG, Pieces: 1
  • Spare Part Headset No. 29
    Item-No: A2298000178, Name: SCREW, Info: M5x0.8 L8mm, Pieces: 1, Torque NM: 6~8
  • Spare Part Headset No. 30
    Item-No: A2262000071, Name: BOSCH OEM PART, Info: Sleeve Narrow, Pieces: 2
  • Spare Part Headset No. 31
    Item-No: A2300000765, Name: BOSCH OEM PART, Info: Bolt Narrow, Pieces: 2, Torque NM: 30
  • Spare Part Headset No. 32
    Item-No: A2258000286, Name: CABLE GUIDE, Info: Stick on cable guide (3/4/4 mm), Pieces: 3
  • Spare Part Headset No. 33
    Item-No: A2258000287, Name: CABLE GUIDE, Info: Stick on cable guide (4/5 mm), Pieces: 2
  • Spare Part Fender No. 1
    Item-No: A2115000037, Name: FENDER, Info: Front Fender, Pieces: 1
  • Spare Part Fender No. 2.1
    Item-No: A2117000082, Name: FENDER ACCESSOIRES, Info: Front Fender Strut for XFUSION MIGO 34 fork, Pieces: 1
  • Spare Part Fender No. 2.2
    Item-No: A2117000029, Name: FENDER ACCESSOIRES, Info: Front Fender Strut for SUNTOUR ZERON 36X fork fork, Pieces: 1
  • Spare Part Fender No. 3
    Item-No: A2298000144, Name: SCREW, Info: M5x0.8 L10mm, Pieces: 1
  • Spare Part Fender No. 4
    Item-No: A2302000027, Name: NUT, Info: M5, Pieces: 4
  • Spare Part Fender No. 5
    Item-No: A2298000068, Name: SCREW, Info: M5x0.8 L10mm, Pieces: 4
  • Spare Part Fender No. 6
    Item-No: A2119000001, Name: FENDER ACCESSOIRES, Info: Fork Adapter Suntour, Pieces: 1
  • Spare Part Fender No. 7
    Item-No: A2292000049, Name: WASHER, Info: OD10mm ID5.5mm H1mm, Pieces: 3
  • Spare Part Fender No. 8
    Item-No: A2116000283, Name: FENDER, Info: Long Performance Fender, Pieces: 1
  • Spare Part Fender No. 9
    Item-No: A2298000379, Name: SCREW, Info: M5x0.8 L35mm, Pieces: 2
  • Spare Part Fender No. 10
    Item-No: A2298000250, Name: SCREW, Info: M4x0.7 L12mm, Pieces: 2
  • Spare Part Fender No. 11
    Item-No: A2098000052, Name: CARRIER, Info: for eONE-FORTY LITE only with fender and screws, Pieces: 1
  • Spare Part Fender No. 12
    Item-No: A2298000473, Name: SCREW, Info: M5x0.8 L33mm, Pieces: 2
  • Spare Part Fender No. 13.1
    Item-No: A2292000014, Name: WASHER, Info: OD9mm ID5.2mm H5mm, Pieces: 6
  • Spare Part Fender No. 13.2
    Item-No: A2292000028, Name: WASHER, Info: OD9mm ID5.2mm H3mm, Pieces: 2
  • Spare Part Fender No. 14.1
    Item-No: A2101000053, Name: FENDER, Info: Rear Fender Inside Strut, Pieces: 1
  • Spare Part Fender No. 14.2
    Item-No: A2116000358, Name: FENDER, Info: Rear Fender, Pieces: 1
  • Spare Part Fender No. 15
    Item-No: A2298000430, Name: SCREW, Info: M5x0.8 L10mm, Pieces: 1
  • Spare Part Fender No. 16
    Item-No: A2298000240, Name: SCREW, Info: M6x1 L16mm, Pieces: 1
  • Spare Part Fender No. 17
    Item-No: A2302000016, Name: NUT, Info: M5, Pieces: 1
  • Spare Part Fender No. 18
    Item-No: A2298000239, Name: SCREW, Info: M6x1 L14mm, Pieces: 2
  • Spare Part Fender No. 19
    Item-No: A2298000237, Name: SCREW, Info: M6x1 L20mm, Pieces: 2
  • Spare Part Fender No. 20
    Item-No: A2184000060, Name: KICKSTAND, Info: for rear mount, Pieces: 1
  • Spare Part Fender No. 21
    Item-No: A2292000005, Name: WASHER, Info: OD10mm ID6.2mm H1mm, Pieces: 1
Sizing Information
Professional Opinion
Product Reviews
Write a review
0 As rated by 0 customers

Write a review for Merida Etmo 500 Pro in Gunmetal Grey/Black

Your name
Your email address
How would you rate it?
Would you recommend this product?
Let others know your opinion
Submit Review Close
Question(s) answered about Merida Etmo 500 Pro in Gunmetal Grey/Black
Ask a question
Question(s) asked regarding Merida Etmo 500 Pro in Gunmetal Grey/Black

Ask a question

Your name
Your email address
Your phone number
Your question
Submit Question  Close
Home Mountain Biking Bikes Merida Electric Bikes
