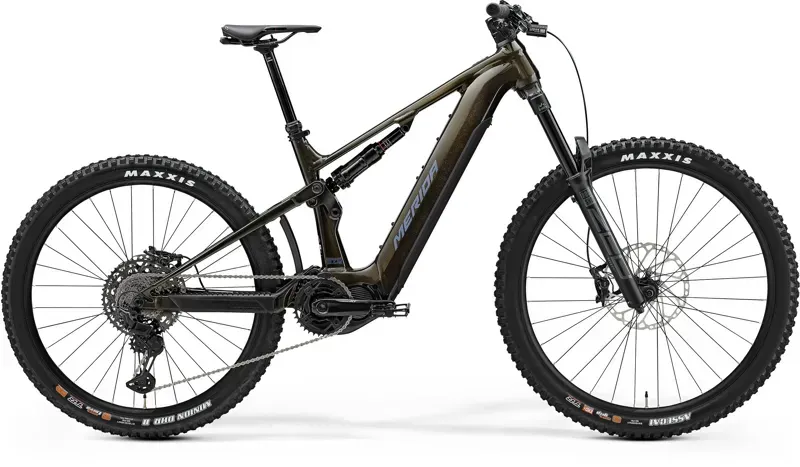

EX DEMO - Merida eOne-Sixty 875 E-Mountain Bike In Gold/Grey

Season:2025

Brand:Merida

Code:P-Q830

DEMO BIKE AVAILABLE - As part of our RedSky Bikes Demo Fleet we have this bike in a Mid size to try and your local trails before you decide to buy!

ALSO AVAILABLE TO BUY AS AN EX-DEMO £4000 - Get in touch now!

Merida eONE-SIXTY 875
Goodbye range anxiety, hello horizon.

The eONE-SIXTY 875 marries a full-power drive unit with a user-removable 750 Wh battery and optional 360 Wh range extender, all wrapped up in a durable aluminium frame. With a proven, low-maintenance FAST suspension platform, you can run mixed wheel sizes as standard or switch to full 29" without compromise. The no-compromise suspension performance of a RockShox Zeb fork and Super Deluxe shock is combined with Shimano's durable XT Linkglide drivetrain.

With the latest eONE-SIXTY, the next descent is always about to start. With an all-aluminium frame, it offers maximum value and maximum battery range, thanks to a powerful drive unit paired with a removable 750 Wh battery and optional 360 Wh range extender. The incredibly capable geometry derived from the award-winning ONE-SIXTY enduro range provides handling that'll help you conquer the toughest climbs as well as the most grin-inducing descents. The proven FAST kinematic suspension will take care of anything the trail throws at it, offering 174 mm of rear wheel travel to go with 170 mm at the front.

With mixed size 29" front and 27.5" rear wheels as standard for playful handling, you can switch to a focussed full 29er setup without messing up the geometry, thanks to the flip chip design. With low standover heights across all sizes, you can choose between a longer frame for more stable handling or a shorter one for an agile feel. Some models feature a ground-breaking 30-230 mm travel-adjustable dropper post.

Features:

  • Fourth generation LITE aluminium frame with 174 mm rear wheel travel.
  • Rockshox Zeb fork with 170 mm travel and Super Deluxe rear shock.
  • Hardwearing Shimano XT Linkglide drivetrain and MERIDA tubeless-ready wheelset.
  • User-removable 750 Wh battery with optional 360 Wh range extender, powerful Shimano EP801 drive unit with the latest upgrade available
  • Mixed wheel size as standard with option to full 29"
  • Reach-based AGILOMETER sizing system with 30-230 mm adjustable dropper post.
Technical Information
  • Model Year
    2025
  • Frame
    eONE-SIXTY LITE IV
  • Material
    Aluminium
  • Suspension Travel
    174mm
  • Max Wheelsize
    29x2.6"
  • Axle Standard
    148x12mm
  • Intube
    750 Wh
  • Frame Size
    XShort, Short, Mid, Long, XLong
  • Shock
    Rock Shox Super Deluxe Select
  • Platform
    Platform
  • Fork
    Rock Shox ZEB Select
  • Fork Type
    Air
  • Fork Suspension Travel
    170mm
  • Fork Taper
    Tapered
  • Fork Offset
    44mm
  • Fork Max Wheelsize
    29x2.8"
  • Motor Unit
    CR-009, Battery Cover
  • Drive Unit
    Shimano EP801
  • Torque
    85Nm
  • Battery
    Trendpower Internal Battery TPS-C04-35SD Gen 2, 750Wh, Removeable
  • Battery Charger
    Trendpower EU Smart Charger
  • Charger Output
    4A
  • Display
    Shimano SC-EM800
  • Speed Sensor
    Shimano EW-SS301
  • Rim
    MERIDA EXPERT TR II
  • Front Hub Width
    110x15mm
  • Rear Hub Width
    148x12mm
  • Rim Inner Width
    28mm
  • Rim Material
    Aluminium
  • Tubeless Ready
    Tubeless Tape And Valves Not Included
  • Front Wheel Size
    29"
  • Rear Wheel Size
    27.5"
  • Hubs
    Shimano XT
  • Front Hub Spoke Holes
    32
  • Rear Hub Spoke Holes
    32
  • Brake Mount
    Centerlock
  • Front Tyre
    Maxxis Assegai
  • Front Tyre Size
    29x2.5"
  • Front Tyre Type
    Fold, TR EXO+ 3C MaxxGrip
  • Rear Tyre
    Maxxis Minion DHR II
  • Rear Tyre Size
    27.5x2.4"
  • Rear Tyre Type
    Fold, 3C DD TR MaxxTerra
  • Hubs
    MERIDA EXPERT TR
  • Hub Features
    Including Removeable Lever, 6/4mm Allen Key
  • Chainwheel
    FSA 1x Steel Chainring
  • Chainwheel Teeth
    36
  • Crank
    Shimano FC-E8150
  • Crank Length
    165 mm All Sizes
  • Cassette
    Shimano LG700
  • Cassette Teeth
    11-50
  • Cassette Speed
    11 Speed
  • Chain
    LG500
  • Shifters
    Shimano SL-MT500-IL / Shimano XT M8130 11
  • Rear Derailleur
    Shimano XT RDM8130 LinkGlide 11
  • Brakes
    Shimano XT
  • Brake Type
    4 Piston
  • Rotors
    Shimano RT64 / Shimano RTEM600
  • Rotor Sizes
    220 mm, 203 mm
  • Headset
    Acros ICR MERIDA EXTERNAL Neck w/ Blocklock
  • Stem
    MERIDA EXPERT eTR II
  • Stem Material
    Aluminium
  • Stem Diameter
    35mm
  • Stem Angle
  • Stem Mount
    Supernova Mount
  • Stem Size
    40 mm All Sizes
  • Handlebar
    MERIDA EXPERT eTR
  • Handlebar Width
    780mm
  • Handlebar Rise
    XS,S 20RHB, M,L,XL 30RHB
  • Grip
    MERIDA EXPERT EC
  • Seat Post
    MERIDA TEAM TR II
  • Seat Post Diameter
    34.9mm
  • Seat Post Setback
    0mm
  • Seat Post Travel
    SHORT, MID, LONG and XLONG 30-230mm, XSHORT 30-200mm
  • Seat Clamp
    MERIDA EXPERT
  • Saddle
    Proxim Nembo Steel
  • Saddle Mount
    V-mount Adapter
  • Included Tool
    MERIDA Minitool
  • Lights
    LEZYNE E-BIKE POWER STVZO E115, Reverse MERIDA Custom Mount / Lezyne LED Fempto USB Rear STVZO
  • Pedal
    VP VP-532
